Wetland & Habitat Mitigation for Road Expansions

July 9, 2025 2 Comments

Regulatory Pathways and Best Practices

Why Wetlands and Sensitive Habitat Matter

Wetlands slow floodwaters, filter pollutants, recharge aquifers, and anchor food webs. Fragmenting or burying them for a wider roadway can raise project costs, introduce permitting delays, and expose the agency (or its consultants) to litigation if required protections are ignored.

Key Regulatory Framework (U.S.)

Statute / Policy	What It Regulates	Lead Agencies	Relevance to Road Projects
Clean Water Act §404	Discharge of dredged/fill material into “waters of the United States” (WOTUS)	U.S. Army Corps of Engineers (USACE) & EPA	Any culvert, embankment, causeway, or borrow-area fill touching wetlands triggers a §404 permit , or a Nationwide Permit if impacts are <½ acre per crossing. (EPA)
Post-Sackett 2025 Guidance	Narrows which wetlands count as WOTUS (must have a continuous surface connection to a relatively permanent water)	EPA & USACE	Fewer roadside “isolated” wetlands now need federal permits, but state rules may still apply. (IVA Environmental Services)
NEPA / FHWA Water Guidance	Requires disclosure of alternatives and mitigation for federally funded roads	FHWA	Early screening tools flag wetlands so designers can avoid or minimize impacts. (FHWA Environment)
Endangered Species Act §7	Impacts to listed species & designated critical habitat	USFWS / NMFS	If wetlands provide listed-species habitat (e.g., vernal-pool fairy shrimp), a Biological Opinion may set extra mitigation ratios.

State overlays (e.g., North Carolina 401 Water-Quality Certification or Florida Wildlife Corridor Act) frequently demand compensatory mitigation even when federal jurisdiction is absent. (NC Department of Environmental Quality)

Permitting Pathways

Avoidance - realign or narrow the footprint to keep fill entirely outside wetlands.
Minimization - span wetlands with bridges, use steeper side-slopes, or add retaining walls.
Compensatory Mitigation - restore, create, enhance, or preserve aquatic resources to offset unavoidable loss (next section).

Early “agency scoping” meetings (FHWA calls them EIS scoping) shorten review times and surface red-flag species or cultural resources before 30 % design.

Compensatory Mitigation Options

Option	Pros	Cons	Typical Use Case
Permittee-Responsible (on-site or nearby)	Full control over design & schedule	High long-term monitoring liability	Small rural bypass where suitable land is adjacent
Mitigation Bank Credits	Turn-key; ecological lift verified; fixed cost	Credits may be scarce or expensive	Urban ring roads; tight construction schedules Lyme Timber example(Hive Green Finance Institute)
In-Lieu Fee (ILF) Payment	Single payment; sponsor assumes risk	Bank-quality performance not guaranteed; time-lag	Counties or DOT districts without nearby banks

North Carolina’s Stream & Wetland Mitigation Program bundles dozens of small DOT projects and contracts restoration in advance, cutting delay days by 40 %. (NC Department of Environmental Quality, FHWA Environment)

Design Best Practices

Functional Assessments First. Apply HGM, EIA, or WET models to quantify lost functions; ratios should reflect function, not acreage alone.
Hydrologic Connectivity. Match pre-project hydroperiod with piped siphons, equalizer culverts, or bridge openings.

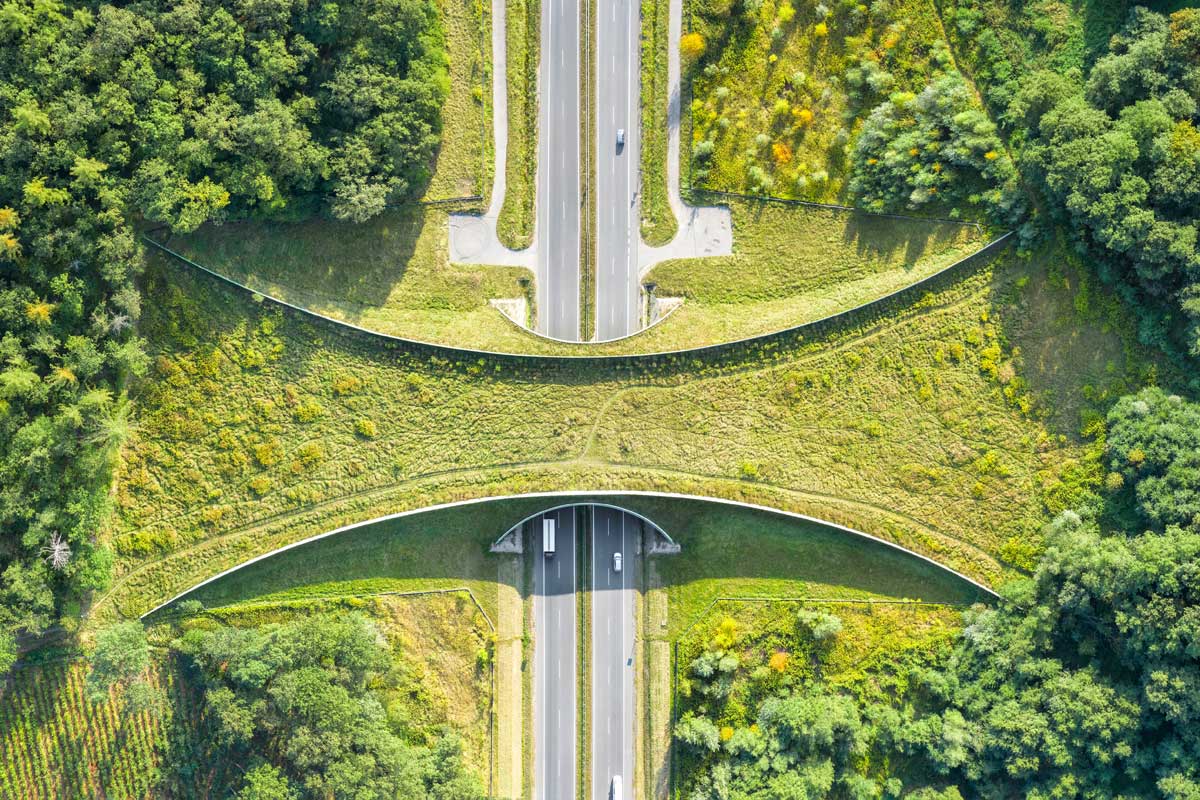

Wildlife Passage. Where roads bisect large habitat blocks, include underpasses or land-bridges. Florida’s new 61 ft-wide I-4 wildlife crossing was sized using black-bear telemetry and funded partly with mitigation dollars. (Johnson Engineering)
Plant the Right Stock. Use eco-region seed mixes, install during dormancy, and water the first two growing seasons. The UK A14 bypass lost ~70 % of its 860 k replacement trees because species and maintenance plans were ill-matched to site conditions, an object lesson in why performance standards matter. (The Guardian)
Adaptive Management. Build a 5- to 10-year monitoring program with clear “if-then” triggers (e.g., replace plugs if survival < 85 % at Year 3).

Case Snapshots

Florida I-4 Wildlife Underpass (2025). Combined §404 wetland mitigation with panther/bear habitat objectives; used FDOT’s design guide for wildlife crossings; $100 M of land-corridor funds protected adjacent wetlands to ensure the structure remained functional. (Johnson Engineering)
NCDOT Umbrella Banking (Ongoing). Revolving trust fund purchases perennial-stream and wetland tracts years before construction, slicing §404 processing from ~18 months to <6 months for participating projects. (FHWA Environment)
A14 Cambridge Bypass (UK, opened 2020). Promised 11.5 % net-gain but failed due to poor planting and data gaps, illustrating why transparent monitoring and public dashboards are critical. (The Guardian)

Emerging Trends to Watch (2025 - 2030)

Hydraulic & Habitat Digital Twins - real-time models integrate lidar, drone bathymetry, and wildlife GPS data to test mitigation scenarios.
Bundled “Nature-Credit” Markets - stacking wetland, carbon, and biodiversity credits can subsidize more ambitious restoration.
Mandated Biodiversity Net Gain rules (already live in England) are being studied by several U.S. states, which may tighten post-construction habitat audits.

Project-Manager Checklist

Map jurisdictional features during concept development (0 %-10 % design).
Hold a pre-application meeting with USACE, state water-quality staff, and US FWS.
Apply the Mitigation Hierarchy and document avoidance alternatives for NEPA.
Select a mitigation vehicle (bank, ILF, or permittee-responsible) before 60 % plans.
Write performance standards linked to quantifiable metrics (survival, hydrology).
Secure long-term site protection (conservation easement or agency ownership).
Budget for monitoring & adaptive management, it often runs 5 - 10 % of mitigation cost.

Start early, wetland delineation and habitat surveys should inform alignment, not chase it.
Pick the right compensatory tool, mitigation banks shine when timelines are tight; permittee responsibility may suit rural corridors with land on hand.
Design for function, not just area, hydrologic reconnection and wildlife passage often deliver the greatest ecological lift and win community support.
Track and publish outcomes, transparent dashboards and performance triggers prevent A14-style failures and build public trust.
