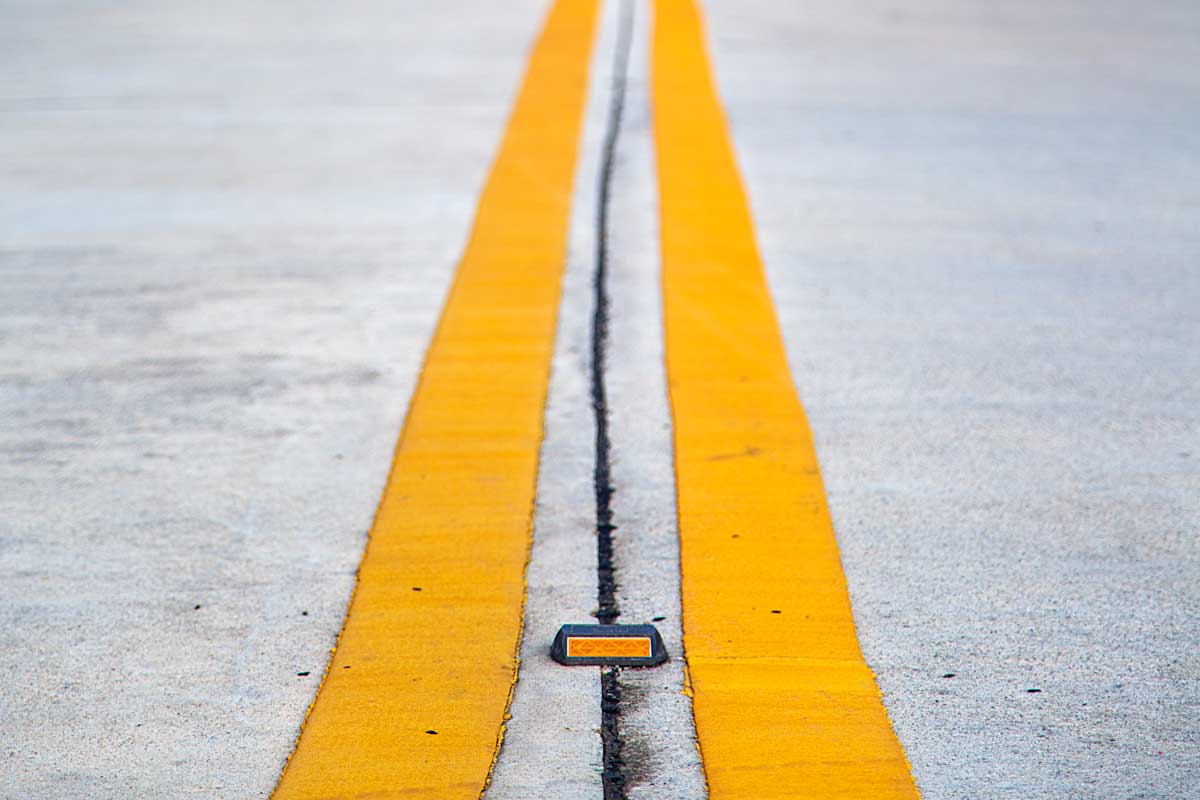

Joint Resealing & Spall Repair for Concrete Roads

Keeping Pavement Joints Tight and Surfaces Sound

Why Joint Resealing and Spall Repair Matter

Concrete pavements depend on tight, watertight joints and sound slab edges to deliver long service life. When sealants fail or joint faces spall, water and incompressibles infiltrate the slab support system, leading to pumping, faulting, and accelerated deterioration. Timely resealing and spall repair:

• Restores waterproofing and load-transfer capacity.

• Prevents freeze-thaw damage and dowel corrosion.

• Reduces roughness that drives user complaints and vehicle wear.

• Extends the pavement’s remaining life for a fraction of reconstruction cost.

Joint Deterioration 101

Mechanism	Symptoms	Typical Triggers
Sealant hardening or debonding	Brittle, shrinking or missing sealant	UV exposure, incorrect material, poor adhesion
Compression damage	Extruded or distorted seal	Temperature swings, insufficient reservoir width
Edge spalling	Broken-back corners, raveling	Incompressibles in joint, impact loading, freeze-thaw
D-cracking at joints	Map-like cracks radiating inward	Poor-quality coarse aggregate, moisture saturation

Joint Resealing: Step-by-Step

1. Assess & Mark
   Survey every joint; photograph, measure widths, and note spalls or patch needs.

2. Remove Old Sealant & Clean

   • Saw-cut or rout to fresh concrete faces.

   • Use hot-compressed-air lance or high-pressure water (≥ 90 psi) to purge debris and moisture.

3. Reshape the Reservoir
   Conform to sealant maker’s geometry tables, usually ½ in (13 mm) wide × ½ in deep for silicone, or ¾ × ¾ in for hot-pour SBS polymer.

4. Install Backer Rod
   Closed-cell rod sized 25 % larger than joint width ensures correct sealant depth and a “dog-bone” profile.

5. Prime (if required)
   Silane primers enhance adhesion on polished or damp concrete.

6. Place Sealant

   • Hot-pour modified asphalt (economical, ~12-15 yr life)

   • Cold-applied low-mod silicone (30-yr design life, premium)
     Maintain kettle temps, avoid air pockets, and overfill slightly for tooling.

7. Tool & Cure
   Concave finish flush with surface; allow cure per spec before traffic return (often < 60 min for hot-pours, 4-6 h for silicones).

Materials Selection Tips

Condition	Recommended Sealant	Notes
High-traffic interstates	Low-mod silicone, Class 25	Handles 25 % movement; long life
Low-volume rural roads	Hot-pour asphalt SBS	Cost-effective, faster cycles
Extreme cold climates	Silicone + pre-compressed foam secondary seal	Added redundancy against thermal cycling
Joint widths > 1 in (25 mm)	Two-stage sealant or strip seal	Accommodates large movements

Spall Repair Fundamentals

Spalls are localized break-offs at the joint/edge; if ignored they propagate, expose dowels, and invite faulting.

Causes

• Incompressibles causing impact when slabs expand.

• Corroding dowels expanding against concrete.

• Freeze-thaw cycles in porous paste.

• Construction errors (saw mis-alignment or late-sawing).

Repair Decision Matrix

Spall Depth	Area	Recommended Fix
≤ 1 in (25 mm)	< 6 in&sup2; (40 cm&sup2;)	Epoxy mortar partial-depth patch
1-3 in (25-75 mm)	Localized	Polymer-modified concrete partial-depth repair
> 3 in or dowel exposed	Wide area	Full-depth repair, dowel retrofit

Partial-Depth Repair Procedure

1. Saw Perimeter straight, min. 2 in (50 mm) deep.

2. Chip Out Unsound Concrete using light chipping hammers (< 15 lb to avoid micro-cracks).

3. Sandblast & Clean to white surface finish.

4. Apply Bond Coat epoxy or polymer per manufacturer.

5. Place Repair Material, rapid-strength cement, polymer concrete, or magnesium-phosphate for cold weather.

6. Finish & Texture match adjacent surface; broom or tyned.

7. Cure & Open, high-early mixes allow traffic in 2-4 hours.

Full-Depth Spall Repair (Edge Rebuild)

• Saw & Remove Slab End across full lane width.

• Inspect/Replace Dowels & Tie Bars.

• Place Doweled PCC Patch with rapid-set, shrinkage-compensated concrete.

• Re-saw Longitudinal & Transverse Joints and reseal.

Quality Control Essentials

• Joint Face Moisture Test: Plastic film check, no condensation before sealing.

• Backer-Rod Seating: Push-test every 50 ft.

• Sealant Adhesion/Pull Test: Random 1 ft sample per 1 000 ft.

• Spall Repair Bond: 250 psi (1.7 MPa) direct tension after 24 h.

• Smoothness & Ride: Straightedge ≤ ⅛ in (3 mm) deviation.

Cost & Scheduling Considerations

Activity	Typical Crew Size	Production Rate	Unit Cost (USD 2025)
Saw-&-seal (silicone)	6	3 000 ft/shift	$1.10-1.40 / ft
Hot-pour reseal	5	5 000 ft/shift	$0.55-0.80 / ft
Partial-depth spall	4	50 sq ft/shift	$60-85 / sq ft
Full-depth patch	6	20 sq yd/shift	$400-600 / sq yd

Nighttime closures on high-volume roads often justify premium wages but cut user delays by 80 %.

Best Practices Checklist

✓ Seal joints before first freeze after installation.
✓ Rout old joints at least &frac14; in beyond visible bond line.
✓ Use backer rods to control shape factor, never bond three sides.
✓ Select rapid-setting mixes that gain 400 psi flexural in < 4 h for full-depth repairs on interstates.
✓ Document each repair, GPS point, material batch, crew notes, for future asset management.

Future-Proofing: Smart Sensors & Analytics

Emerging acoustic sensors embedded at joints can alert agencies when sealant modulus drops or spalling begins, enabling data-driven maintenance timing and reducing network-level life-cycle costs by up to 15 %.

Joint resealing and spall repair are low-cost, high-impact interventions that preserve ride quality, protect the pavement structure, and delay expensive reconstruction. By applying the right materials, adhering to precise installation steps, and enforcing rigorous QC, road agencies can keep concrete pavements performing smoothly, and taxpayers smiling, for decades.
